Name: 2D Wireless Barcode Scanner DI9130C-2D with Bluetooth 4.2 and 2.4G
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Nhà Sản phẩm Máy quét mã vạch không dây

2D Wireless Barcode Scanner DI9130C-2D with Bluetooth 4.2 and 2.4G

Thông tin chi tiết sản phẩm:

Thanh toán:

Số lượng đặt hàng tối thiểu:	1

Tiếp xúc

Chi tiết sản phẩm

Mẫu số:	DI9130C-2D	Loại giao diện:	USB
Tốc độ quét:	300 lần quét/giây	Phần tử quét:	CMO
Nghị quyết:	640*480	Tỷ lệ độ phân giải:	4mil/0,1mm
tốc độ giải mã:	35cm/giây	độ sâu trường ảnh:	35mm ~ 300mm
Dung lượng pin:	1200mah	Thời gian làm việc liên tục:	8 giờ
Cân nặng:	≈70g (không có cáp)	Kích thước:	L128.6mm * W46.7mm * H30.3mm
Nhiệt độ hoạt động:	-20ºC đến 55ºC	Nhiệt độ lưu trữ:	-20ºC đến 60ºC
Độ ẩm:	5% đến 95% (không phụ)
Làm nổi bật:	2D wireless barcode scanner with Bluetooth , Bluetooth 4.2 barcode scanner , 2.4G wireless barcode scanner

Mini Handheld 2D Wireless Barcode Scanner CMOS Warehouse Barcode Scanner

Product Overview

The DI9130C-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media, making it ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.

Key Features

Wearable design optimized for warehouse and express applications
Reads all mainstream 1D and 2D barcodes (4mil resolution)
100,000 data storage capacity
Bluetooth 4.2 with intelligent automatic reconnection
Multiple connectivity modes: Bluetooth (HID, SPP, BLE) and Wireless 2.4G
Compatible with PC and mobile devices

Technical Specifications

Attribute	Value
Model NO.	DI9130C-2D
Interface Type	USB
Scan Speed	300 scans/sec
Scan Element Type	CMOS
Scanning Mode	Auto Sense, Trigger, Continuous
CPU	32-Bit
Resolution	640*480
Resolution Ratio	4mil/0.1mm
Decoding Speed	35cm/S
Depth of Field	35mm~300mm
Scan Mode	Manual, Auto Sense, Continuous
Prompt Method	LED, Buzzer, Vibration
Print Contrast Signal	25%
Ambient Light	Dark Environment, Indoor Natural Light
Wireless Communication Mode	Synchronization, Storage
Storage	350kb
Battery Capacity	1200mAh
Battery Charging Time	About 2.5 Hours
Continuous Working Time	8h
Transport Package	Brown Carton
Specification	17011040MM/box
Trademark	DYscan
Origin	China
HS Code	8471900090

Performance Details

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
Field of View	Horizontal 45° × Vertical 34°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Wireless Transmission Distance	Bluetooth 30 m, Wireless 2.4G 150m (Open distance)
Support System	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Parameter	Value
Weight	≈70g (without cable)
Dimension	L128.6mm × W46.7mm × H30.3mm
Communication Mode	USB
Interface Type	Type C
Power Supply	DC5V, 250mA (Work), 40mA (Standby)

Environmental Specifications

Parameter	Value
Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Accessories

Item	Description
Cable	USB, connects the scanner to a host device and charging
Receiver	Used to receive and transmit scanner data

Supported Symbologies

1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

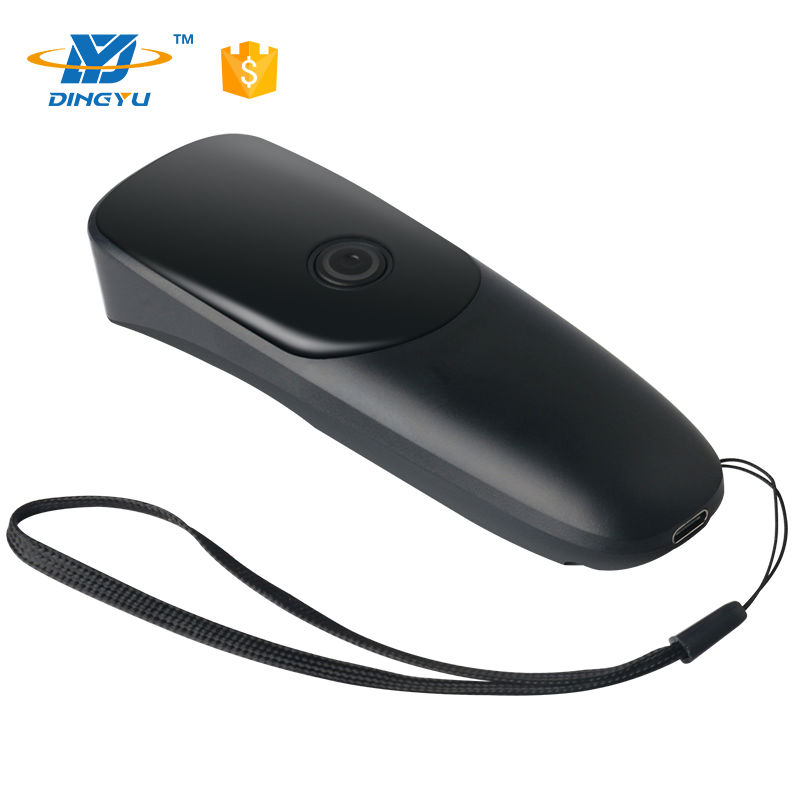

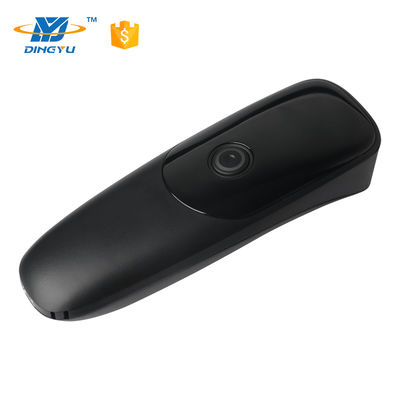

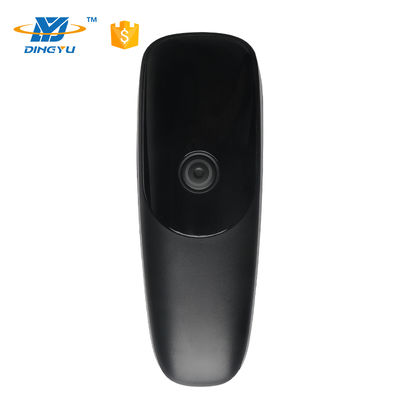

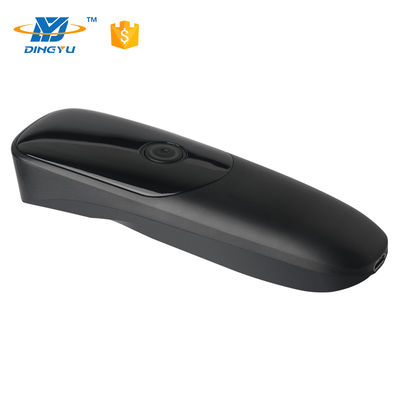

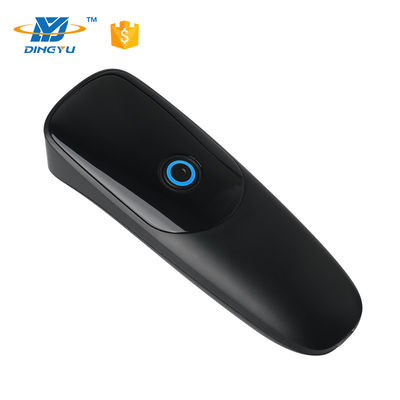

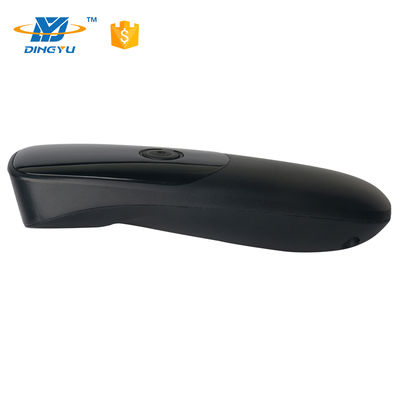

Product Images

Application

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.

Q2: How do you perform quality control?

DYscan: We conduct wire bend tests 1 million times, buttons are tested 1 million times, and all devices are tested before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: 12 months warranty.

Q4: How do you maintain stable performance?

DYscan: We use flow line production throughout the entire process. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services?

DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company strengths?

DYscan: As professional scanner manufacturers, we have specialized departments with dedicated directors. Our R&D department develops new products, the production department handles manufacturing and testing, and our Marketing and Sales department includes sales teams and customer service.

Q7: Do I need to install drivers?

DYscan: No. Our scanners support plug-and-play functionality with no driver installation required. Compatible with Windows, Mac OS, IOS, Linux, UNIX, Android, and other systems.
