Name: DS5110 1D CCD Barcode Scanner 3mil Resolution 10-600mm Depth
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Nhà Sản phẩm Máy quét mã vạch 1D

DS5110 1D CCD Barcode Scanner 3mil Resolution 10-600mm Depth

Thông tin chi tiết sản phẩm:

Thanh toán:

Số lượng đặt hàng tối thiểu:	1

Tiếp xúc

Chi tiết sản phẩm

Mô hình không.:	DS5110	Loại giao diện:	USB, RS232
Phần tử quét:	CCD	Nghị quyết:	Mã 3MIL39
độ sâu trường ảnh:	10-600mm	Chế độ quét:	Thủ công, liên tục, quét tự động, nhấp nháy
In tương phản:	≥20%	CPU:	32 bit
Chiều dài cáp:	1,5m	Cân nặng:	147g
Cung cấp điện:	DC 5V 80MA	Nhiệt độ hoạt động:	-20 đến 50 độ
Kích thước:	L161mm * W63mm * H80mm	tốc độ giải mã:	300 lần/giây
giảm chiều cao:	1,5m
Làm nổi bật:	1D CCD barcode scanner with 3mil resolution , DS5110 barcode scanner 10-600mm depth , 1D barcode scanner with warranty

1D CCD Barcode QR Code Scanner Handheld Wireless Retail Barcode Scanner

DS5110 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read barcodes on paper, goods, screens and other media. Widely used in manufacturing, warehouse, logistics, healthcare, retail chains, mobile payment, express delivery, inventory management, food traceability, and asset inventory.

Product Parameters

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Test Conditions: CODE39,10mil/0.25mm,PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈147g(without cable)
Dimension	L161mm * W63mm * H80mm
Communication Mode	USB(USB-KBW,USB-COM),RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA(work)
Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp., High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM

Key Features

Ergonomic design for comfortable use
Reads all mainstream 1D barcodes easily
High-performance processor with fast decoding (3mil)
Supports multiple languages and systems
Interfaces: USB, RS232
Ideal for supermarkets, warehouses, mobile payment, and chain stores

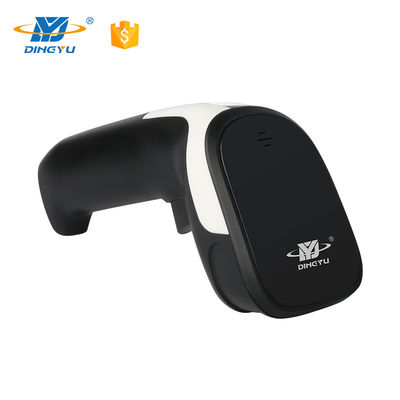

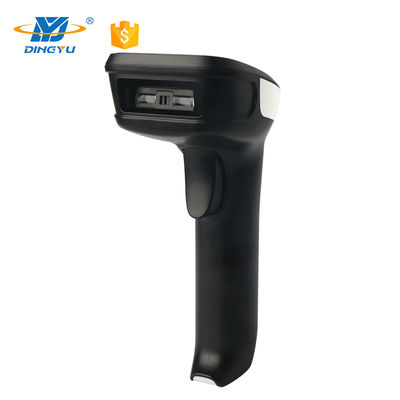

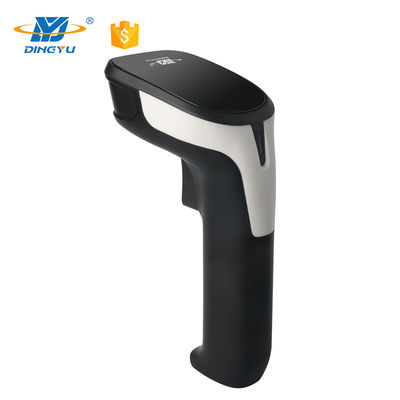

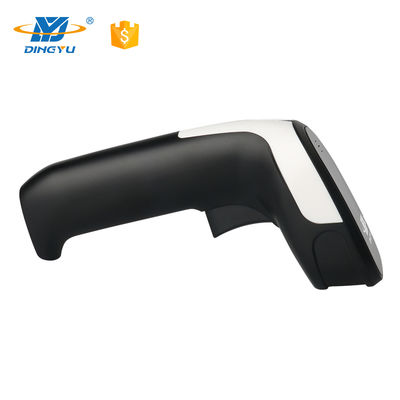

Detailed Photos

Company Profile

Packaging & Shipping

Certifications

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We have a professional QC team and testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.

Q2: How do you perform quality control?

We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.

Q3: What is the warranty period for the barcode scanner?

12 months warranty.

Q4: How do you ensure stable performance?

We use flow line production throughout the process. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services for barcode scanners?

We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have specialized departments: R&D for new product development, production for manufacturing and testing, and marketing/sales with dedicated customer service.

Q7: Do I need to install drivers?

No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
