32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning

32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning

  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
Thông tin chi tiết sản phẩm:
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: 10
Tiếp xúc
Chi tiết sản phẩm
Mẫu số: DE2290 Loại giao diện: USB
Tốc độ quét: 35cm/giây Phần tử quét: CMO
tỷ lệ phân giải: 3MIL/0,076mm Nghị quyết: 300.000 điểm ảnh, 640*480
Chế độ quét: Thủ công, liên tục, tự động nhận biết, điều khiển lệnh In tương phản: 20%
Nguồn điện: DC 3.3V, 200mA làm việc cáp ffc: 5cm
giảm chiều cao: 1,2m Cân nặng: 3.5g
độ sâu trường ảnh: 40-530mm Kích thước: 21,40 (L) 15,40 (W) 10,70 (H) mm
Dung sai chuyển động: 65cm/giây
Làm nổi bật:

32-bit CPU Barcode Scan Engine

,

1 Mega Pixel Embedded Barcode Scanner

,

1 Year Warranty 2D Barcode Module

DE2290 Embedded 1D/2D Barcode Scanning Engine

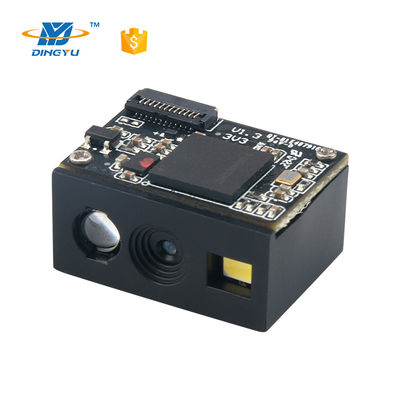

The DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and an intelligent image recognition system.

32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 0
Key Features
  • Excellent reading performance for barcodes on paper, merchandise, and screens
  • Compact design for easy integration into various equipment
  • Ideal for self-service machines, price checking systems, and lockers
  • Supports multiple operation modes including trigger and auto-sensing
  • Wide reading angle and motion tolerance
Technical Specifications
Parameter Specification
Weight 3.4g (without cable)
Dimensions 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface USB, USB-com (requires driver), TTL (USB 2.0 Full Speed)
Light Source White LED (auto-adjusting brightness), Red aiming LED (525nm)
CMOS 1280×800 resolution
CPU ARM 32-bit
Startup Time 750ms
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 30-500mm
Scan Modes Trigger mode, Auto sense mode, Command control
Reading Angle: Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Visual Angle: Horizontal 40° × Vertical 30°
Motion Tolerance: 65cm/s
Power Input: 3.3V~5V (DC5V recommended)
Standby Current: 47mA, Decoded average current: 180mA
Operating Temperature: -20ºC to 55ºC
Storage Temperature: -20ºC to 60ºC
Humidity: 5% to 95% (non-condensing)
Supported Symbologies
1D Codes: Codabar, Code39, Code128, UPC-A/E, EAN/JAN, GS1 Databar, MSI, and more
2D Codes: PDF417, QR Code, Data Matrix, Aztec, and Micro variants
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 1 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 2 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 3
Packaging & Shipping
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 4
Company Profile
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 5
Certifications
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 6
Exhibition
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 7
